Using Snap Lines

Video Tutorial:

Article:

A helpful feature in the Page Editor is the ability to snap elements over to where they'll look best on the page. Snap Lines are invisible guides which help you arrange your page so everything goes where it's supposed to. You can set up your snap lines either at Page Level, Account Level, or Funnel Level.

Page Level

1. Add some elements to your page.

2. Move the mouse over the element you want to move, and you'll see a four-pointed arrow. Click and drag to move the element around the page.

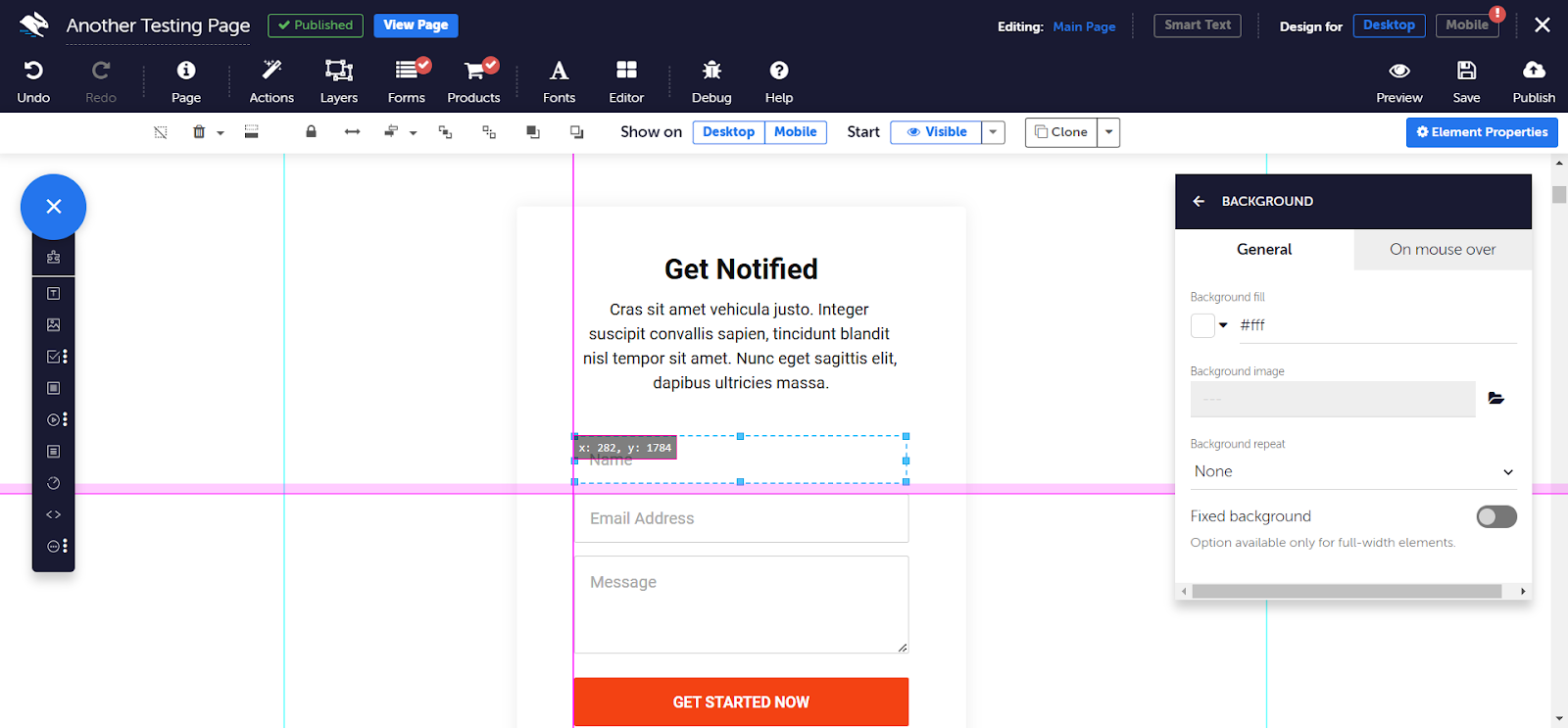

3. When the element comes into line with other elements, you'll see pink vertical or horizontal lines making it clear where the element is in relation to others.

4. Use the pink lines as a guide to line up your elements perfectly. You'll also see pink lines every 10px to the left or right of a main line, allowing you to create gutters and staggered layouts, and they originate from every element's edge and middle.

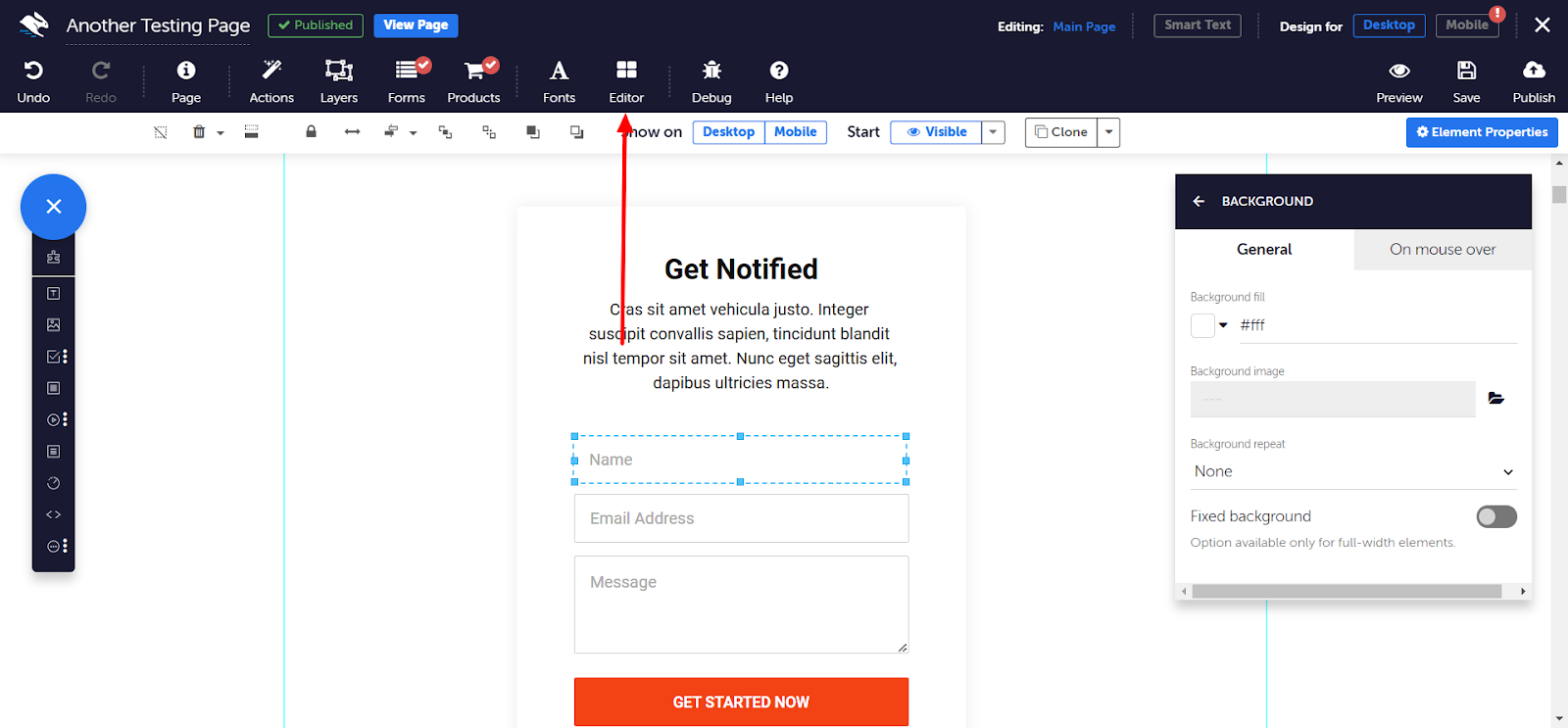

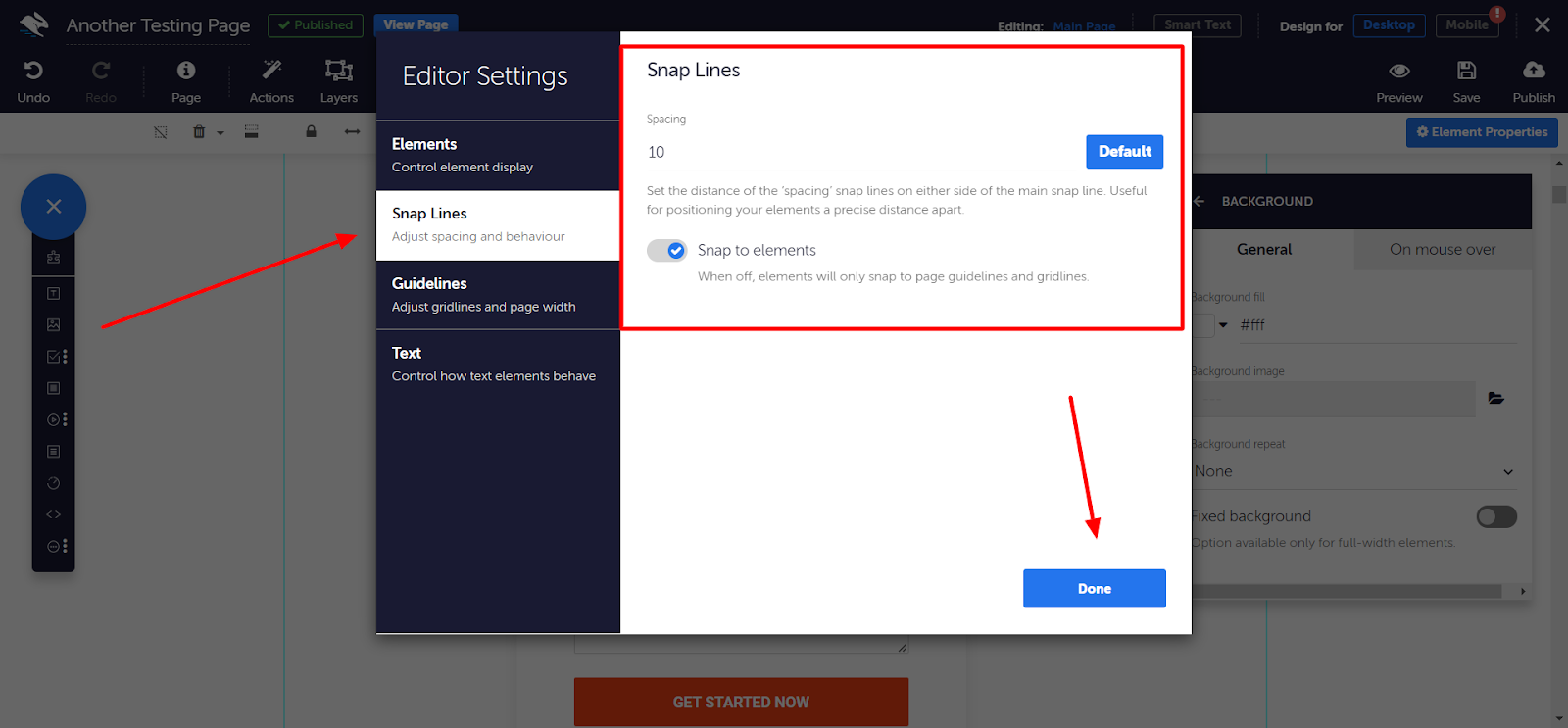

Convertri will automatically snap an element to these pink lines when you move close enough, but if you don't want to use this feature you can toggle ‘OFF’  simply by clicking the ‘Editor’ in the top toolbar. Then Navigate to Editor Settings ‘Snap Lines’ tab.

Account Level

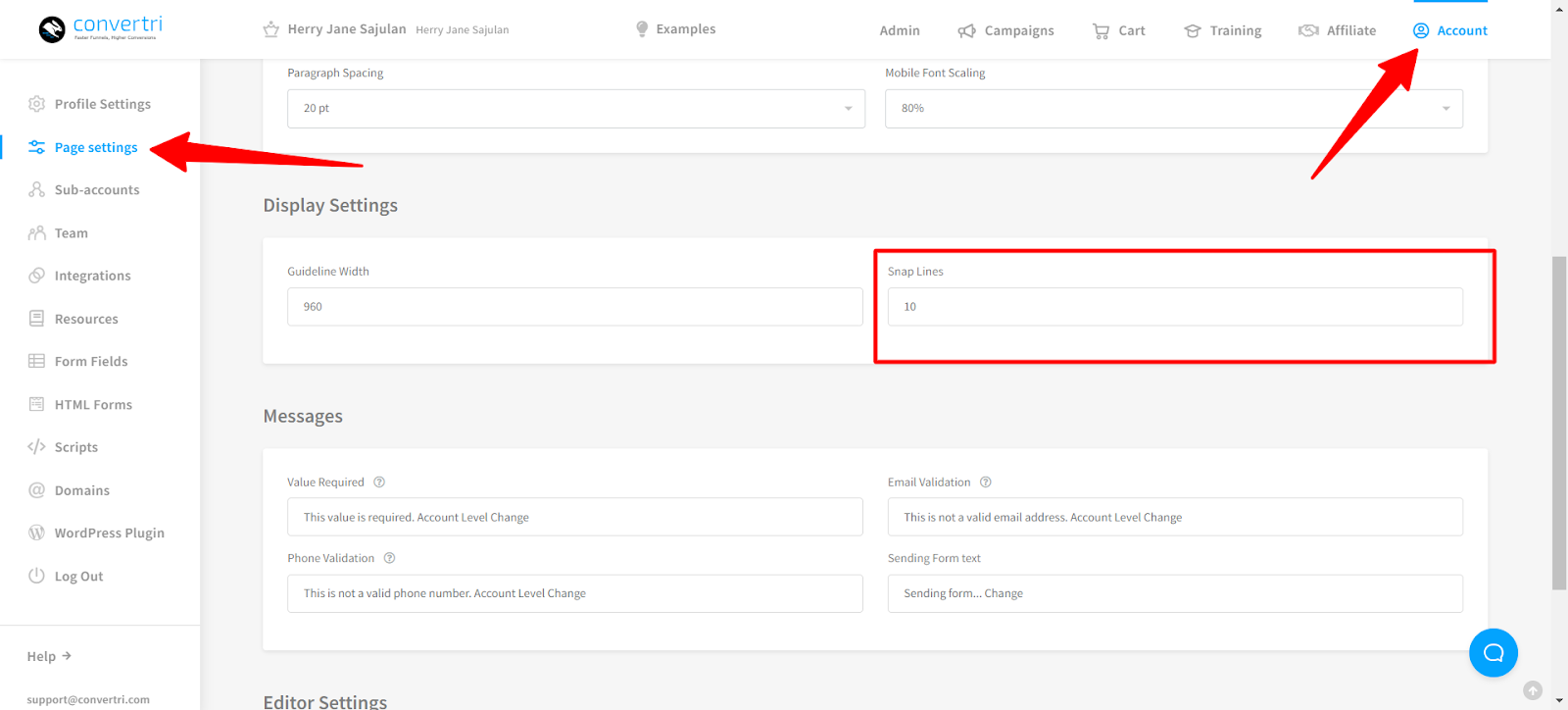

Click ‘Account’ on the top-menu and select ‘Page settings’ on the left-side menu On the Display Settings input your preferred Snap Line in the field.

Funnel Level

In this level you will be able to set the page settings - Snap Lines, once for each specific funnel, eliminating the need to repeat the process each time you create a new page within the funnel. It also allows you to customize different defaults for each funnel you create.

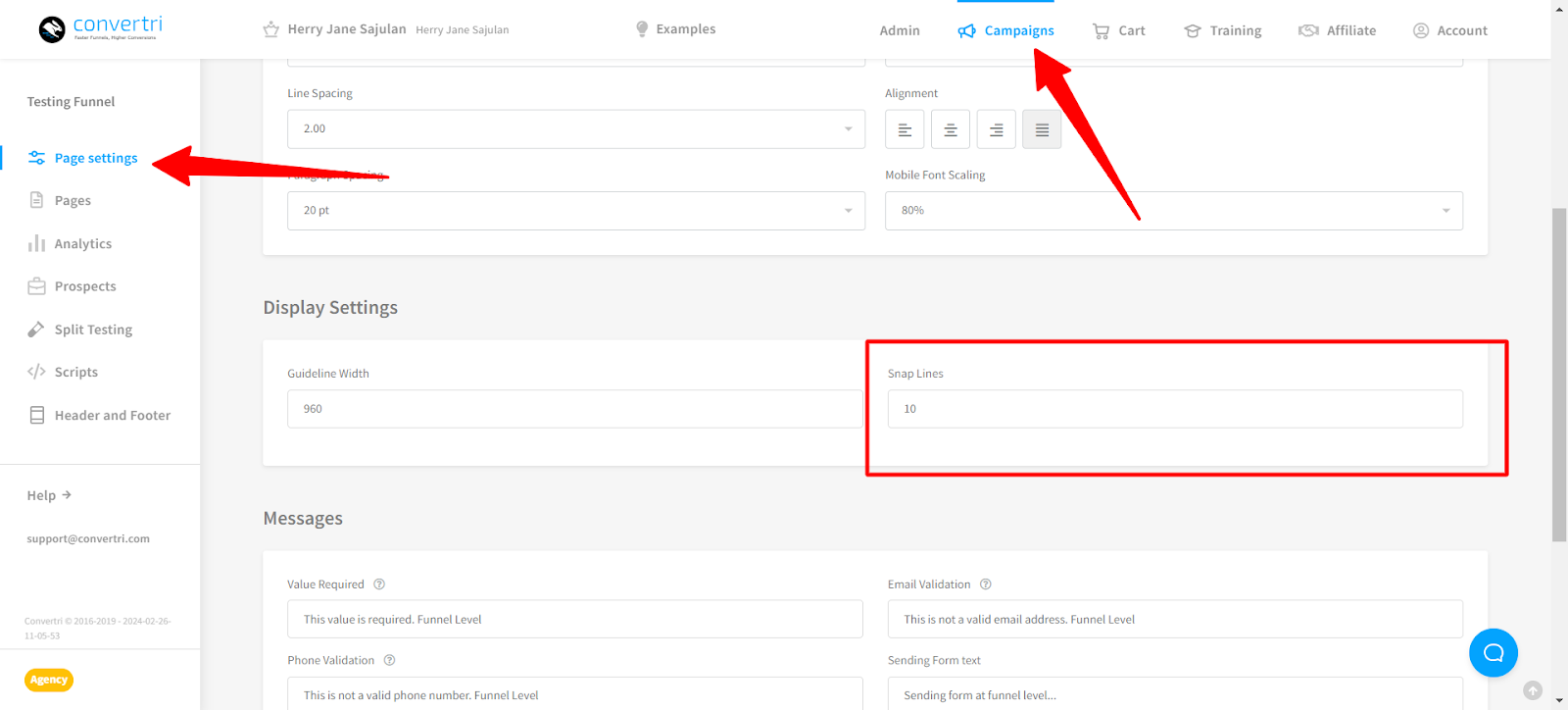

To begin, On your Campaign dashboard select any funnel. Inside that funnel click on the ‘Page Settings’ on the left side menu.

NOTE: Editing the Page Settings Snap Lines  at either in Account or Funnel Level only affects new pages. Existing pages won’t be changed when you adjust settings on these levels.
